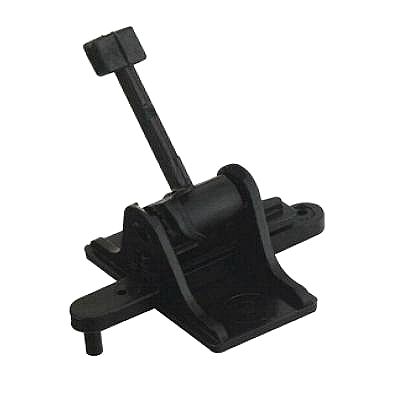

Caboose
Industries #206S is molded of strong, self-lubricating
black delrin. External cam provides maximum life and
travel. Cam design provides lock on both ends of the
throw from10º above
horizontal to the extreme down position.Direct connection
to the turnout through a pin on the slide bar. Detent
to assist in holding the handle horizontal.
The 206S features internally sprung stands. Stainless
steel springs take up the overtravel and maintain tension
to hold the movable points agianst the stock rails of the
turn out. These springs make the machines easy to mount
to the turnout.

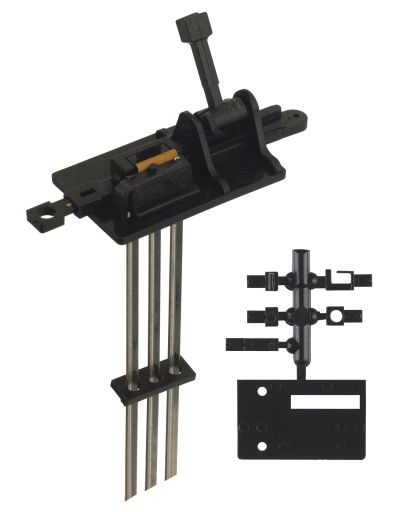

Caboose
Industries #224S ground throws come complete with contact
and selectable end fittings and are recommended for use
with Atlas Code 55 Turnouts.Slidebar
travel of 0.165". The SPDT contact can be used
to power a turnout frog, a signaling system, or a relay
coil. A
shim to raise the stand to tie level and five different
end fittings is included.
|
